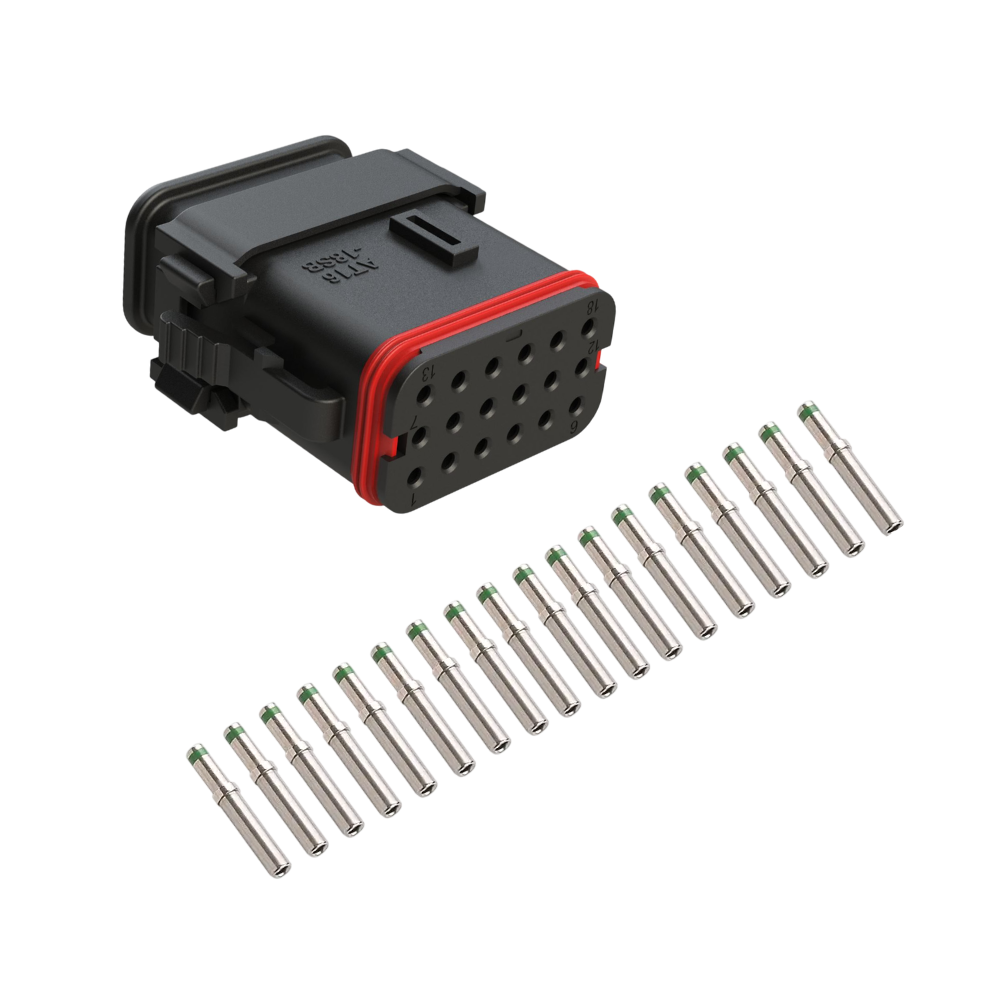

18 Way Female Amphenol / Deutsch Connector Kit

Kit Contains:

(1) 18 Way Female Connector
(18) DT Sockets
(1) Insertion / Removal Tool

Find the mating connector here.

Specifications

No. of Positions: 18
Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT16-18PB* Receptacle
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular
